13 - 2

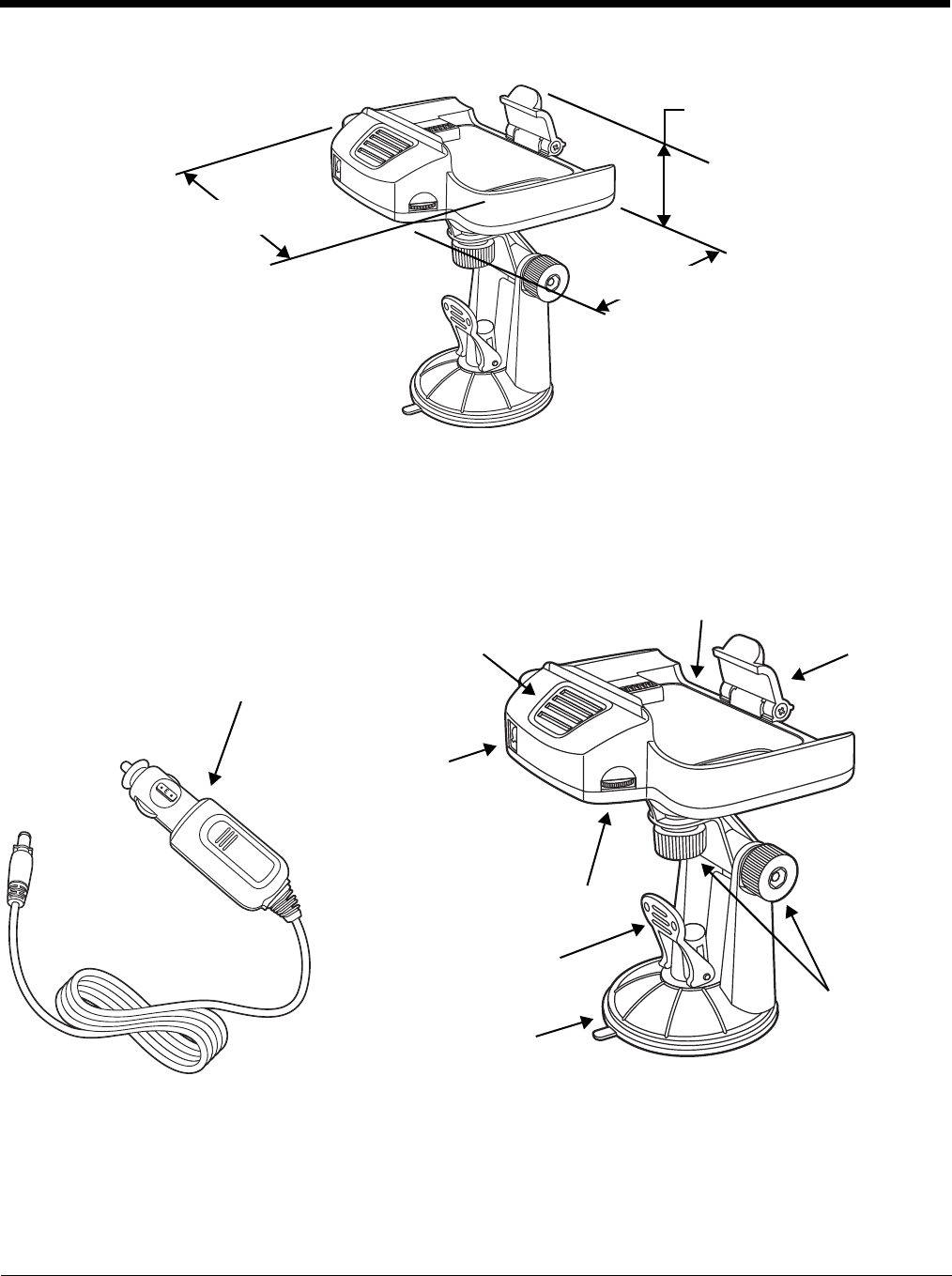

Dimensions

Weight

Mobile Base and adjustable arm weight: 270g [.595 lbs]

Mobile Base Components

Adjustable Arm with Suction Cup Base for Windshield Mounting

The Mobile Base includes a two point adjustable arm with a suction cup base for fixed mount

locations (e.g., a car windshield).

159.98 mm

[6.30 inches]

109.82 mm

[4.32 inches]

42.15 mm

[1.66 inches]

Terminal Charging Well

Power Adapter

Speaker Volume

Control

Spring

Latch

Speaker

Power Jack

Mounting Lever

Two point

Adjustable Arm

Suction Cup Base
